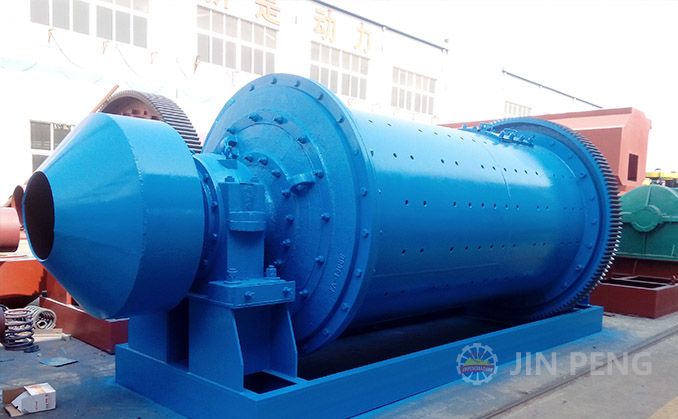

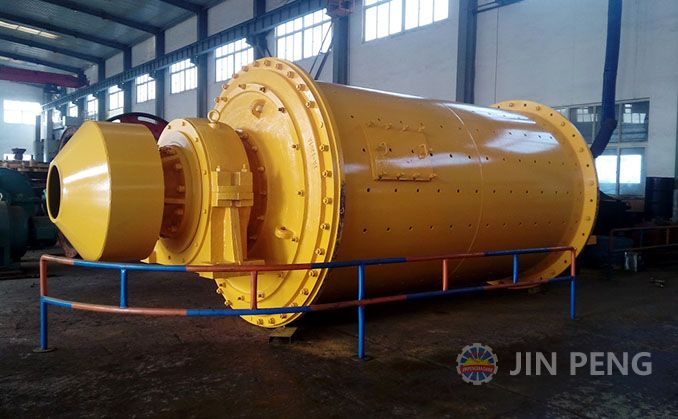

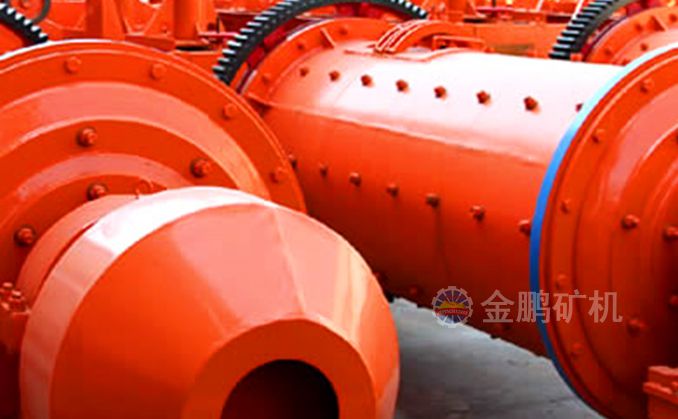

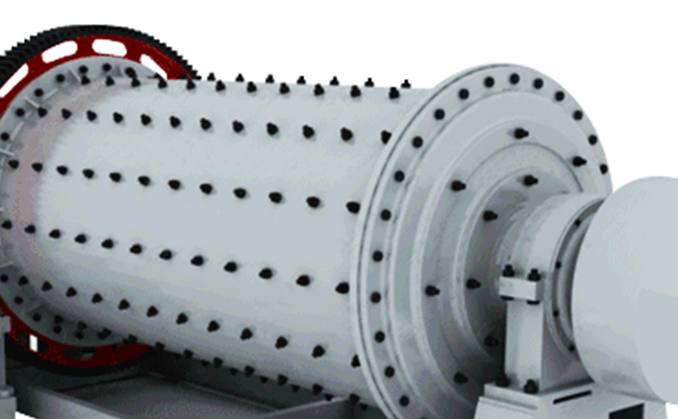

Wet overflow ball mill

The main component of wet overflow ball mill is a cylinder with bigger diameter and smaller length which is revolved by transmitting machinery. Materials are put in cylinder through the feed opening and then thoroughly grinded. The falling course of iron balls and ores can produce huge falling impact and autogenous grinding.

Production capacity : 0.17~170t/h

Effective volume : 0.9-78m³

Structure

It is mainly composed of feeding, feeding, main bearing, cylinder, transmission department, delivery department and the main motor and other parts.


The main component of wet overflow ball mill is a cylinder with bigger diameter and smaller length which is revolved by transmitting machinery. Materials are put in cylinder through the feed opening and then thoroughly grinded. The falling course of iron balls and ores can produce huge falling impact and autogenous grinding. The continuous feeding of ores can create considerable pressure to make ores move from feed opening toward discharge opening. Finally, acceptable particles are discharged from the discharge opening. Acceptable ore particles are carried away by water by wet mill, or by air by dry mill.

Advantages

1. The jack-up device of wet grate ball mill makes maintenance easy.

2. The hydrostatic and hydrodynamic bearings ensure the smooth operation of wet grate ball mill.

3. The low speed transmission of wet grate ball mill contributes to easy overhaul and maintenance.

4. The oil-mist lubrication device guarantees reliable performance of bearings.

5. The gas clutch adopts the flexible start-up model

Parameters

Wet overflow ball mill
ModelbarrelMotorBoundary   dimension(mm)Effective   volume(m3)Max   loading ball(t)weight(kg)
diameter(mm)length(mm)speed(r/min)ModelPower(kw)lengthwidthheight
MQY0918900180039.2Y225M-8224196233620150.91.665340
MQY12121200120031.3Y250M-8304500210417331.12.411438
MQY12241200240031.3Y280M-8455764210417332.44.613200
MQY15151500150030.9JR115-8606094274321702.5513120
MQY15301500300030.9JR117-8806800274321705.088.619166
MQY15451500450030.9JR127-81309085309121706.5711.322147
MQY21222100220024.05JR128-81557750445035336.61642500
MQY21302100300024.05JR137-821083304450353392044260
MQY21452100450024.05JR137-82109933445035331323.550348
MQY24302400300022.5JR138-8A28088235113389412.122.558328
MQY24362400360022.5JR138-8B32094555113389414.52661308
MQY27272700270021.6JR138-8B32086435722467415.33083145
MQY27362700360021.6JR1510-8400104635942467418.43489120
MQY27452700450021.6TDMK450-3245011471590746742342109318
MQY32363200360018.5TDMK630-36630124427030515025.651144241
MQY32453200450018.5TDMK630-36630139757030515032.861153390
MQY32543200540018.5TDMK1000-361000148757030515039.573163760
MQY36453600450017.3TDMK1000-40100015200768054634176174700
MQY36503600500017.3TDMK1250-401250157007680546346.486178000
MQY36603600600017.3TDMK1250-401250169107680546355.7102198000
MQG40674000670016.2TDMK1800-301700174009600730078138240000
