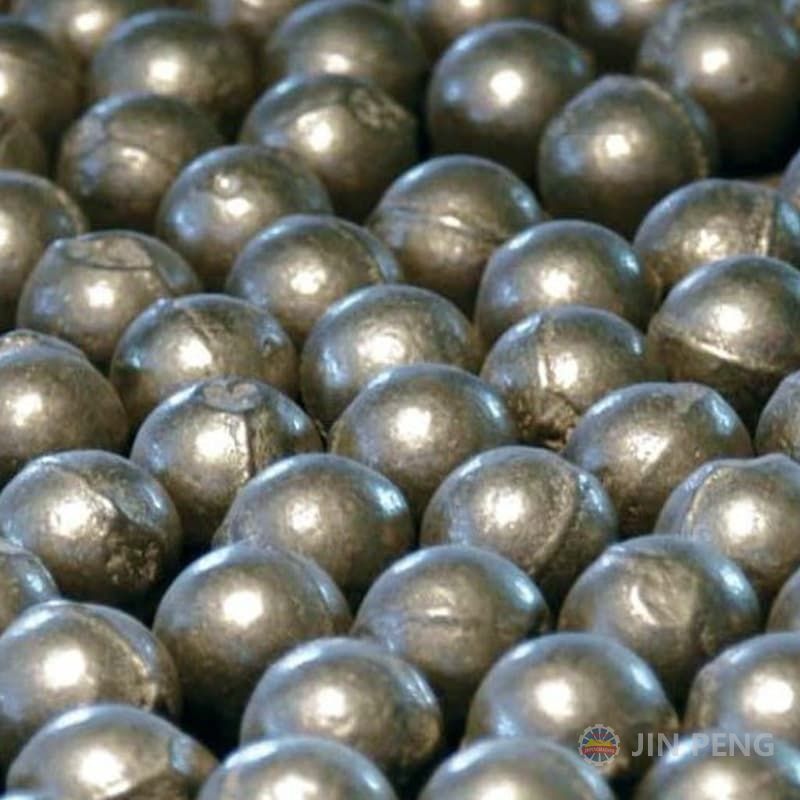

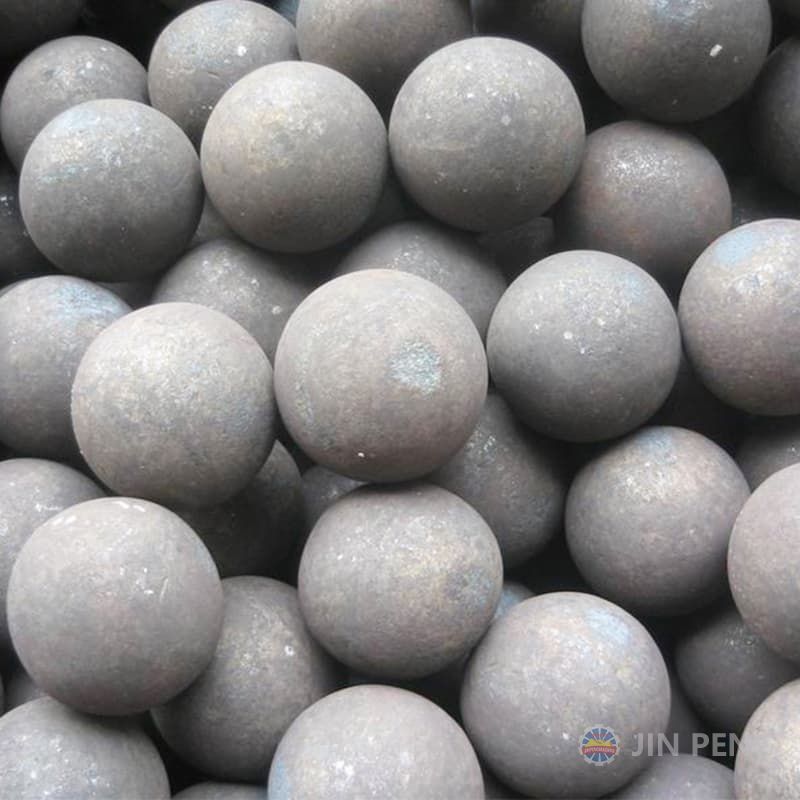

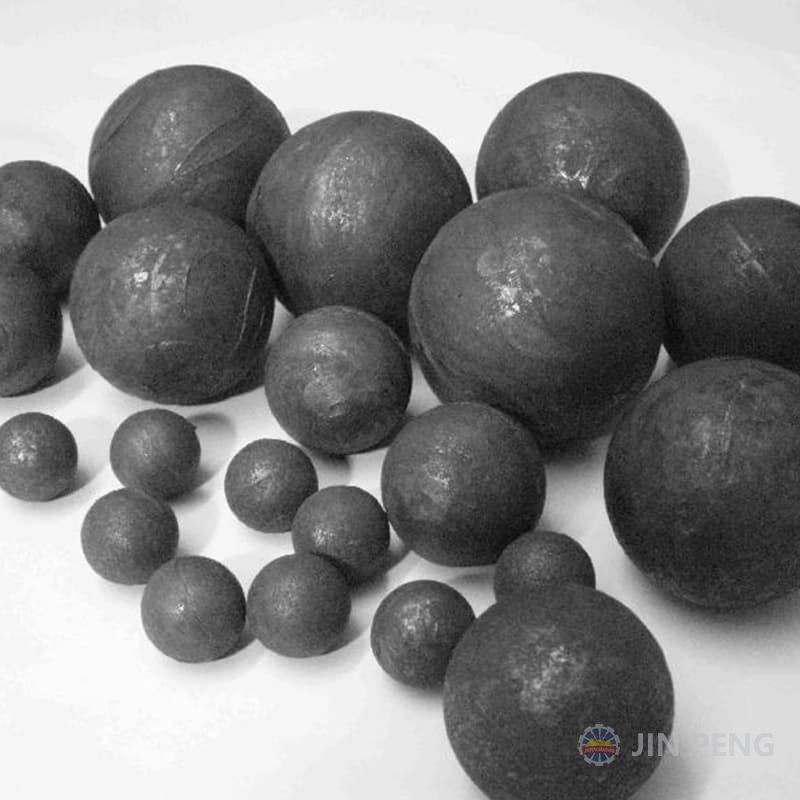

Ball mill ball is ball mill equipment grinding material medium, through the ball mill ball ball and material between the collision between the friction produced mill strip effect, important basic parts, especially the precision industrial ball in the national Ball mill ball Economic development plays an important role. Widely used in cement plant, power plant, etc. High and low chromium multielement alloy steel ball, high and low chromium multielement alloy casting.
Name | Chemical Elements (%) | |||||||
C | Si | Mn | Cr | Mo | Cu | P | S | |
Low Cr Balls | 2.2-2.5 | ≤1.2 | 0.5-1 | 0.8-1.8 | 0.6-1 | ≤1 | ≤0.05 | ≤0.05 |
Middle Cr Balls | 2.2-3.3 | ≤1.2 | 0.5-1 | 3-6 | 0.6-1 | ≤1 | ≤0.05 | ≤0.05 |
Normal High Cr | 1.6-3.3 | ≤1.0 | 0.5-1 | 10-13 | 0.8-1 | ≤0.6 | ≤0.05 | ≤0.05 |
Special High Cr | 2.0-3.3 | ≤1.o | 2.1-3 | 15-23 | 0.8-1 | ≤0.6 | ≤0.05 | ≤0.05 |
Size(mm) | Weight(kg/pc) | Quantity(pc/t) | Size(mm) | Weight(kg/pc) | Quantity(pc/t) | |
Φ30 | 0.11 | 9091 | Φ90 | 2.90 | 345 | |
Φ40 | 0.25 | 3891 | Φ100 | 4.00 | 250 | |
Φ50 | 0.50 | 2000 | Φ110 | 5.30 | 188 | |
Φ60 | 0.86 | 1153 | Φ120 | 6.80 | 147 | |
Φ70 | 1.37 | 729 | Φ130 | 7.70 | 129 | |
Φ80 | 2.05 | 487 | Φ140 | 8.74 | 114 |
Name | HRC | Ak(J/cm2) | Microstructure | Times of Falling Balls | |
Low Cr Balls | ≥45 | ≥1.6 | P+C | ≥10000 | |
Middle Cr Balls | ≥48 | ≥2.0 | P+C | ≤Φ80 | ≥15000 |
≥Φ80 | ≥10000 | ||||
Normal High Cr | ≥56 | ≥2.5 | M+C+A | ≤Φ80 | ≥15000 |
≥Φ80 | ≥10000 | ||||
