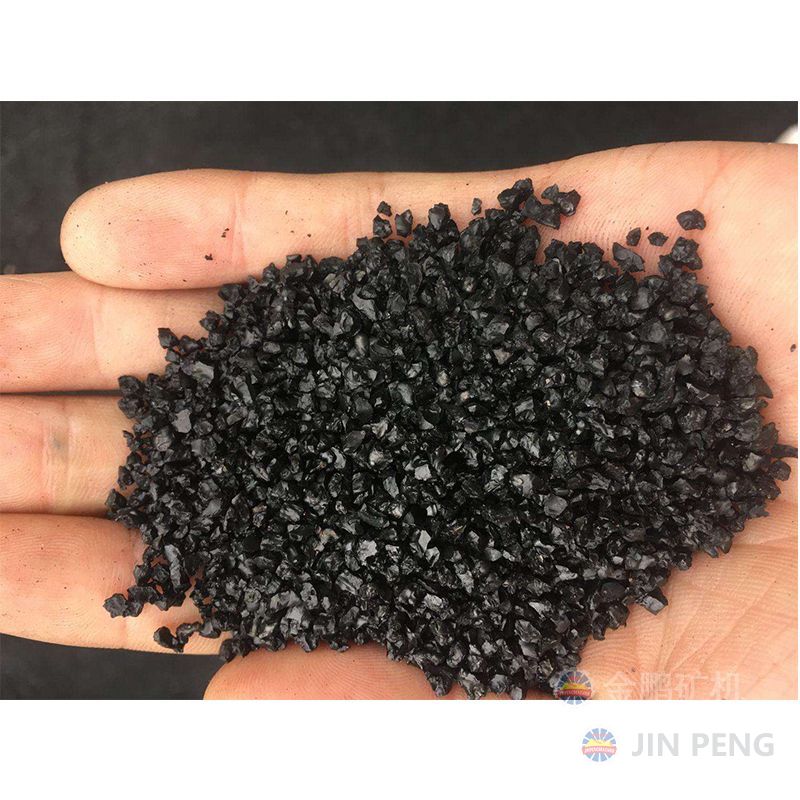

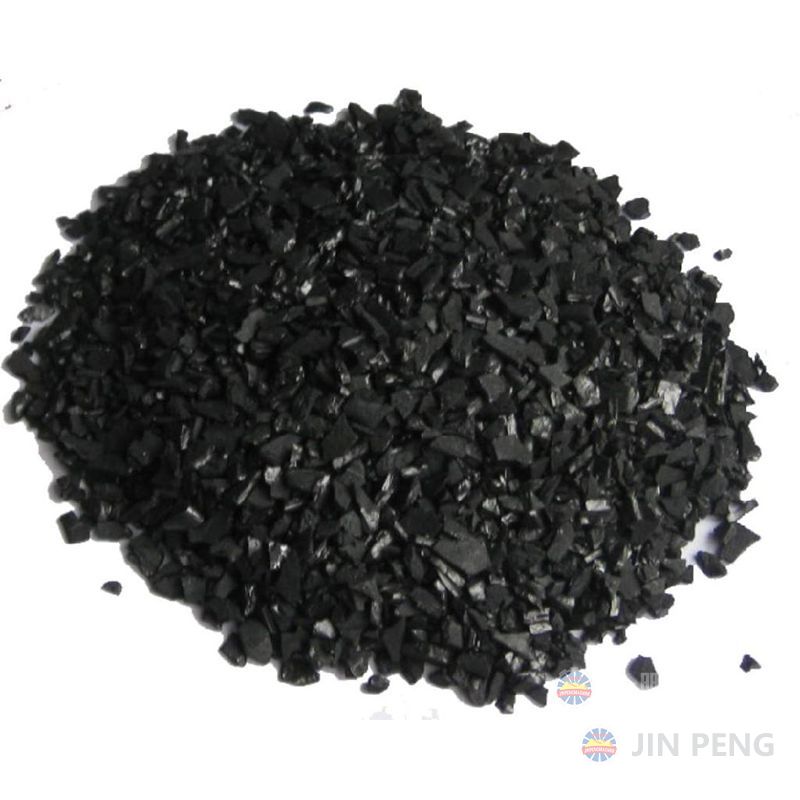

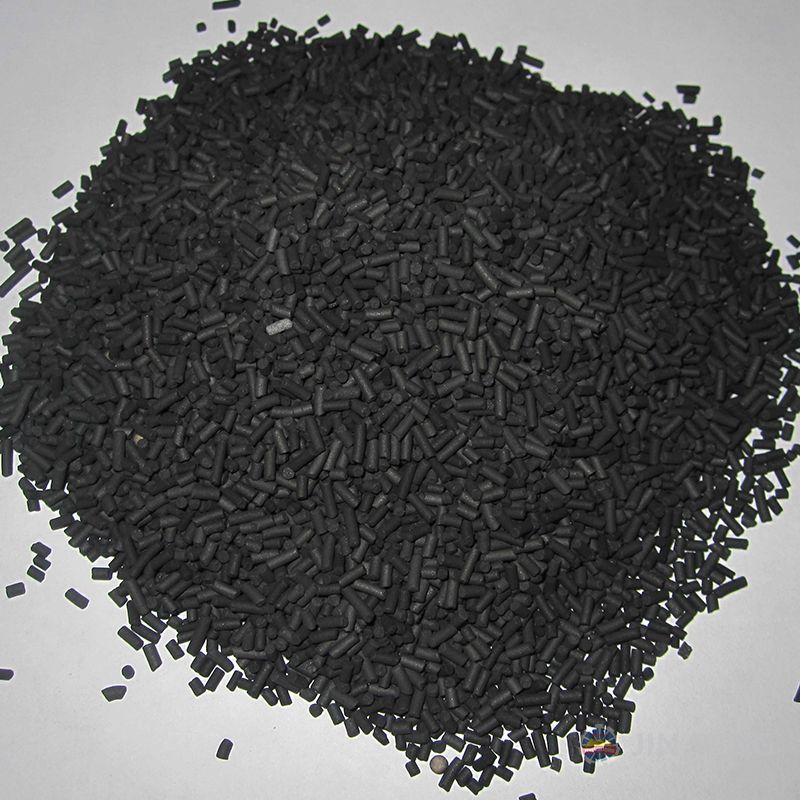

Activated Charcoal

Activated charcoal is made of imported high quality coconut shell wich adopts a special activation process by blowing and winnowing. Our coconut activated charcoal’s advantages of uniform particle size, high strength, well-developed porous structure, strong adsorption of precious metal, easy to electrolytic analysis and repeated regeneration. This kind of activated charcoal is widely used in Our CIL process.

Application

Mainly used for CIP, CIL, gold extraction of heap leaching and separation and extraction of precious metal in metallurgical industry.

Coconut activated charcoal adsorbs complexes containing gold in carbon adsorption tank. After the adsorption, the gold loaded carbon enters into desorption electrolysis system under the action of the pump. The carbon enters into the regeneration furnace after analysis, and iodine can generally be restored to more than 95% for reusing.


Technical Parameters

Items

A Grade

B Grade

Particle size 6-12 mesh

%

≥98

≥95

Abrasive resistance

%

≥98

≥96

Iodine sorption value

mg/g

≥1000

≥900

Loss on drying

%

≥96

≥96

Apparent density

g/ml

0.45-0.55

0.5-0.55
