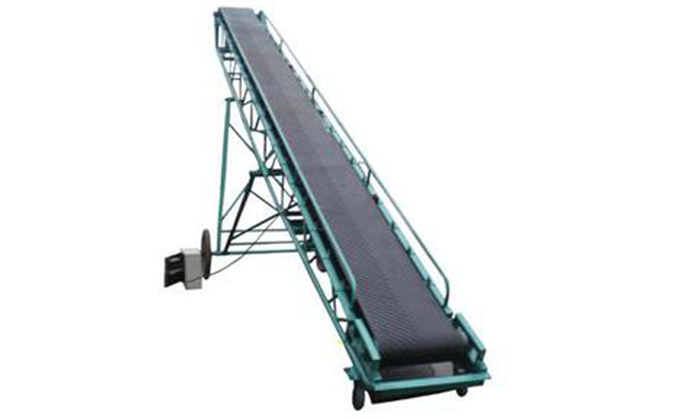

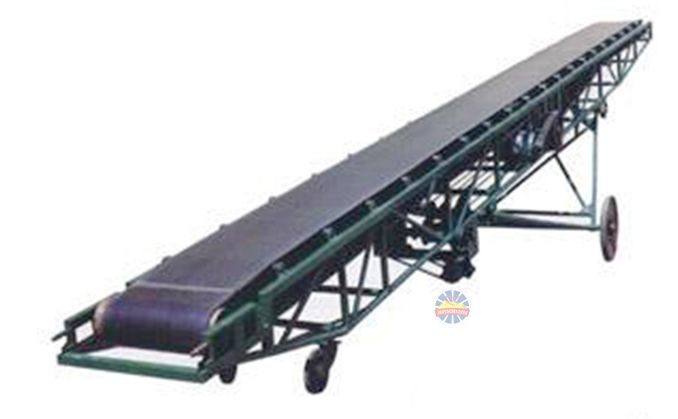

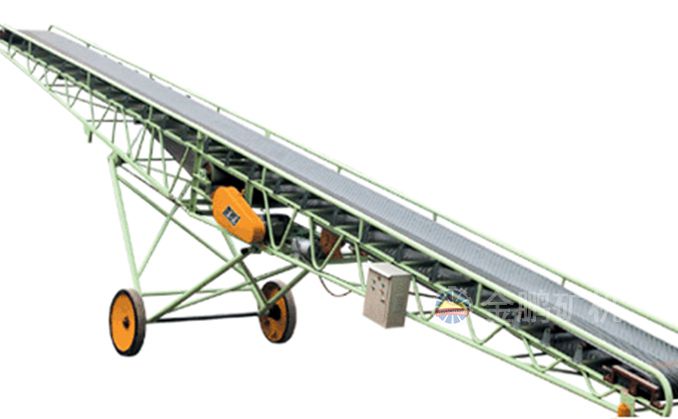

HQ belt conveyor

HQ belt conveyor is a kind of transportation equipment that has big throughput, low operating cost, widespread applications. It is applicable to transport capacity of 0.5-2.5 t / m3 of lump(block), powder and other bulk materials. This type of conveyor is popular in chemistry, mining, coal, metallurgy, building materials, light and grain industry to transfer bulk materials. In accordance with the requirements of transportation, it can be used alone, or combined with other conveyors to build a conveyor system.

length : 5-20m

Application material : Loading and delivery of soil, sand, coal, gravel, grain, etc, and pieces of material

Structure

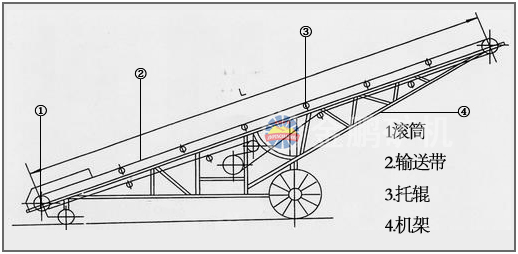

①roller  ②conveyer belt  ③ carrier roller  ④rack

Belt conveyor consists of two endpoint-rollers and a closed conveying belt that attached to it. The roller that drives the conveyor is called drive roller (transmission roller); the other one that only used for changing the direction of the conveyor is called redirection roller. The drive roller is drove by the reduce driver, and the conveyor is drove by the friction that produced by the roller and conveyor. The drive roller is installed at the discharging end, in order to increase the traction force and easy to drive. The materials come in to the feed opening, then arrive at the conveyor, and discharged by the conveyor.

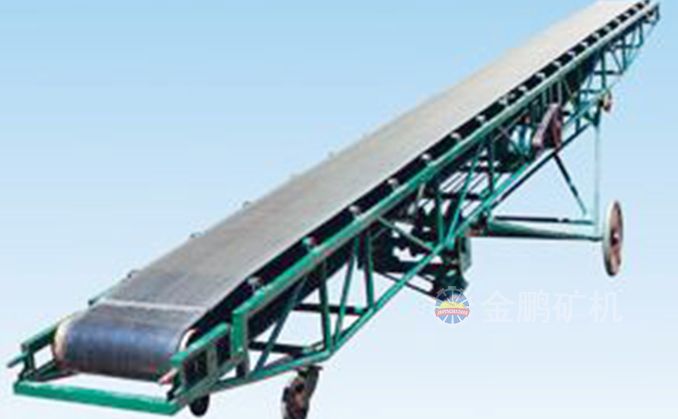

HQ型移动式带式输送机-05 .jpg


Advantages

1.Stable operation;safe
2.low power consumption
3.Long service life
4.low maintenance

Parameters

HQ belt conveyor


model

Conveying length(m)

belt width(m)

belt speed(m/s)

delivery capacity(m³/h)

delivery height(m)

Tighten schedule(mm)

motor power(kw)

weight(kg)



HQ72-   5

5

400

1.25

74

1

150

1.1

333


HQ80-   7

7.2

1.15

220

425


HQ80-   10

10

1

1.5

511


HQ69-10

500

1.6

110

3.91

300

2.2

1550


HQ69-15

15

5.7

3

1800


HQ71-20

20

120

6.9

7.5

2500
