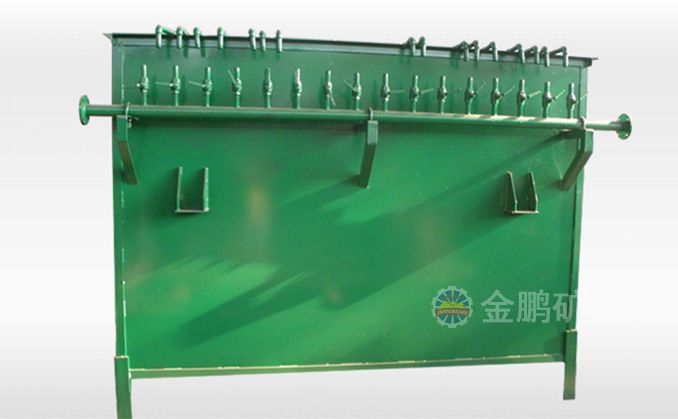

Frame purification tank

Frame purification tank is a kind of traditional filter, which achieves the filtering through pumping out the pregnant solution depending on external vacuumizing force. In the previous process, diatomaceous earth was applied onto the external surface of screen cloth for being used as a kind of filter aid. Currently, diatomaceous earth is scarcely applied

Scope of Application : Widely used in Zinc cementation process of gold leaching pregnant solution cleaning section

filter area : 45-90㎡

Principle

filter cloth as a filter medium for solid and liquid separation, in a vacuum situation, clear liquid through filter cloth and fine grain particles adhere to the surface of the filter cloth, so as to solid-liquid separation.

Advantages

No moving parts, convenient operation and maintenance.

Parameters

Frame  purification tank

model

filter area (m2)

barrel volume(m³)

max filtering pressure(Mpa)

weight (kg)

BKC-45

45

5.62

100

2021

BKC-70

70

9.04

3064

BKC-90

90

11.78

3900

BKC-100

100

13.15

4317

BKC-140

140

18.62

5152
