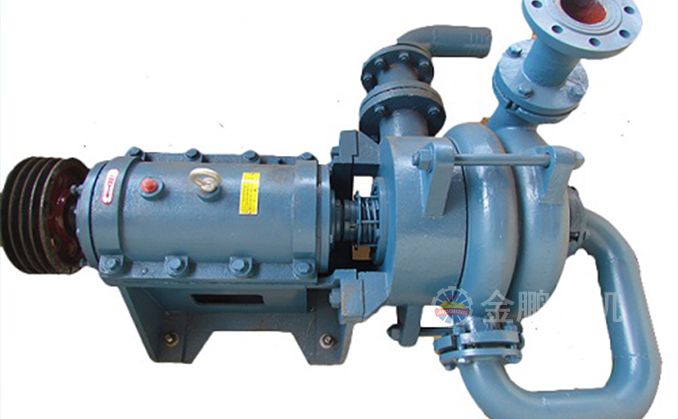

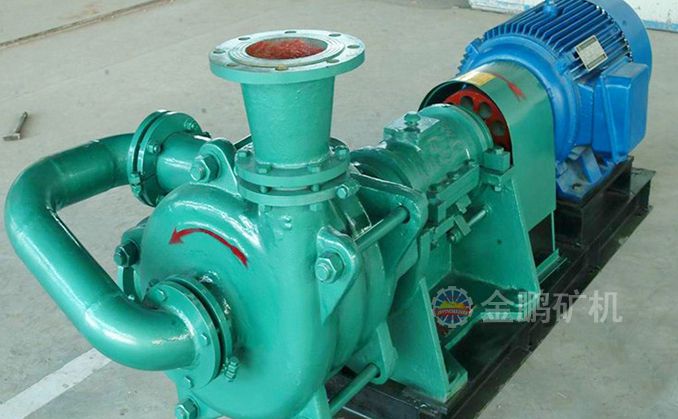

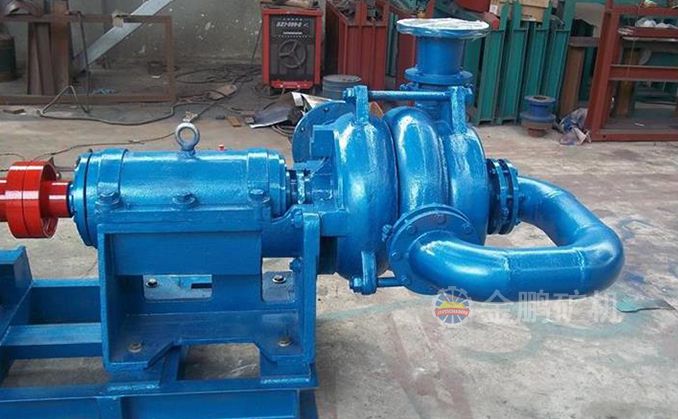

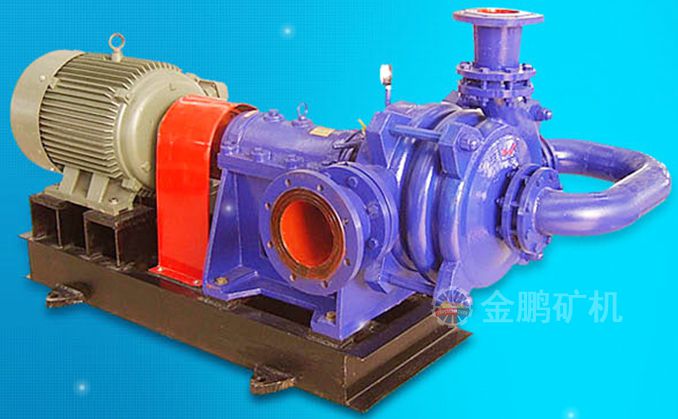

Feeding pump of filter press

Feed pump of filter press has compact structure, less vibration,high efficiency,mechanical seal,all parts touched with water can be made of stainless steel.

Scope of Application : Demand for product material variety, suitable for different medium

Online consultation Ask for quotation

Structure
Product Parameters
Browse other product

Structure

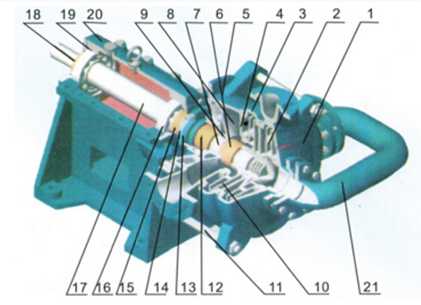

1. The secondary volute 2. The secondary impeller 3. primary volute 4. Backplate 5. feed compartment 6. locating sleeve 7. vice impeller 8. vice impeller cover plate 9. Reliever 10. Primary impeller 11. tie-rod 12. axle sleeve 13. cylinder cover 14. stripping ring 15. Water retaining plate 16. Bearing 17. Axle 18. Bearing block 19. Bearing cover 20. Bracket 21. pipe bending

Feed pump of filter press special in low pressure, all parts touch with liquid can be of stainless steel materials,cast iron materials is mainly for the clean water and physically chemically similarto clean water liquid, caststeel materials is for the mine water liquid with small liquid as it can anti abrasive.

Product Parameters

Feeding pump of filter press
Model	Flow（m³/h）	Lift（m)	Speed（r/min)	Power belts （kw）	matching filter press(㎡)
50ZJE65-22	20-70	30-65	1450	22	40-60
50ZJE75-30	20-70	35-75	1450	30	40-70
50ZJE76-37	20-100	30-76	1450	37	60-120
65ZJE80-45	35-125	35-80	1450	45	60-120
80ZJE65-45	40-140	30-65	1450	45	80-150
80ZJE75-55	50-160	35-75	1450	55	80-150
100ZJE75-75	70-245	30-75	1450	75	100-200
100ZJE80-90	50-280	35-80	1450	90	100-200
125ZJE70-90	80-300	30-70	1450	90	150-250
150ZJE75-110	80-330	35-75	1450	110	150-300
