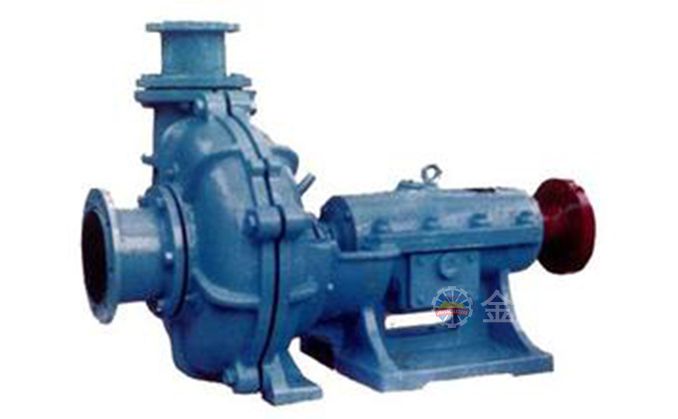

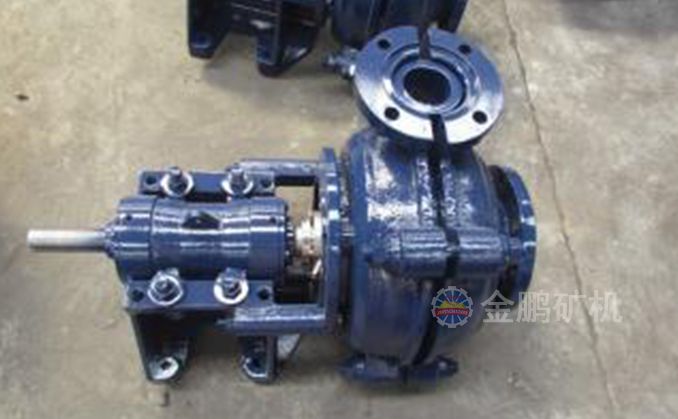

AH-HH Horizontal slurry pump

AH type slurry pump are cantilever, horizontal centrifugal slurry pump, which are used for delivering the fine particle and corrosive slurry for metallurgical, mining, coal, petroleum & chemical, transportation, river and channel dredging, building material and municipal projects, etc

Production capacity : 226.8 m3/h

Scope of Application : Mining, pumping slurry

Features

AH mining slurry pump, HH mining slurry pump, mining slurry pump

Features:

Grease lubrication, single-stage, single-suction, cantilevered, horizontal, wear resistant layer and bearing layer can be separated, double casing structure.

High efficiency, wear resistant, stable performance, interchangeability of parts

Series AH(R), the lining and impeller can be made of wear metal or rubber.

The discharge outlet of the centrifugal slurry pump can be adjusted with rotation interval of 45 degrees; the pumps can be operated in series and driven with belt.

The shaft seal can adopt expeller type shaft sealing, gland packing assembly and mechanical sealing.

Slurry pump AH series pump spares are compatible with the famous Pump.

Type notation:

For example: 2/1.5BK-AHR

2-------Suction diameter

1.5-------Discharge diameter

KB-------Frame type

AHR------ Slurry pump type

Specification

Discharge Diameter:25~450mm

Flow Capacity:6.5~5000m3/h

Head:5~55m

Material:A05 , A31 , A33 , A49 , etc

Product Parameters

AH-HH Horizontal slurry pump

Model

Power(KW)

Flow

(m³/h)

Lift

speed

Efficiency

Gross weight(kg)

1.5/1B-AH

2.2-15

3.6-20

5-68

1200-3800

40

91

2/1.5B-AH

2.2-15

7-48

7-62

1200-3200

45

118

3/2C-AH

4-30

21-86

12-65

1300-2700

55

191

4/3C-AH

5.5-30

50-150

9-45

1000-2000

71

263

4/3D-AH

7.5-60

68-160

10-52

1000-2200

71

363

6/4D-AH

22-120

72-360

12-56

800-1550

65

626

6/4E-AH

18.5-120

93-385

12-63

800-1600

65

728

8/6E-AH

110-300

360-820

10-61

500-1100

72

1473

8/6R-AH

45-560

360-820

10-61

500-1140

72

1836
