Thickener with peripheral transmission

thickener with peripheral transmission has two kinds, peripheral roller transmission and peripheral gear transmission.Single row cross column rotary support or single row four point contact ball rotary support, collector device with good insulation, exposed rotary parts with light shield.

Scope of Application : Wet beneficiation, coal preparation assignments of the concentrate and tail in the pulp and plant,tail coal slurry concentration and clarify

Application area : Coal, chemical industry, building materials, municipal, environmental protection, textile, electricity, etc

Application

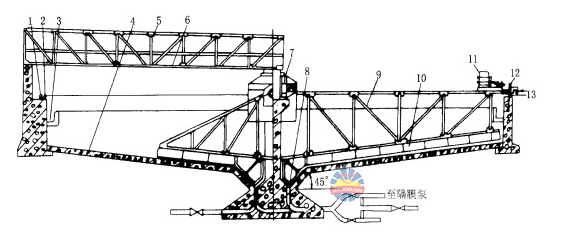

1. rack  2. Pathway  3. overflow launder  4. concentrated tank  5. Bracket  6. feeder trough  7. current collecting equipment  8. discharge opening  9. Rake  10. scraper blade  11. Drive the car  12. roller wheels  13. gear

The machine is suitable for dealing with large capacity and light density products. Mainly used for condensing concentrate and dewatering the tailings. It can be also used for condensing and cleaning the pulp with solid particles in coal, chemical, building materials and sewage treatment system.

Advantages

Parameters

Peripheral roundscrewdie driving thickener

model

thickening pond

Deposit area(m2)

Motor

Production capacity(t/d)

weight(kg)

diameter(m)

depth(m)

model

power(kw)

NG-15

15

3.5

177

Y132M2-6

5.5

390

9120

NG-18

18

3.5

255

Y132M2-6

5.5

560

10000

NG-24

24

3.7

452

Y160M-6

7.5

1000

24000

NG-30

30

3.6

707

Y160M-6

7.5

1570

26420

NG-45

45

5.06

1590

Y160L-6

11

2400

58640

NG-53

53

5.07

2202

Y160L-6

11

3000

60910
