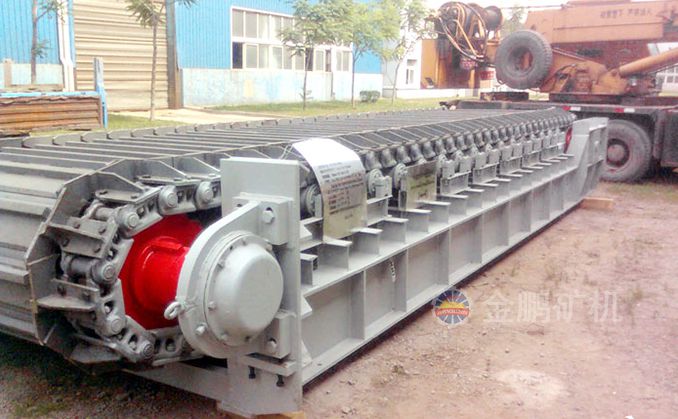

Plate feeder

This machine is used to continuously and uniformly feed primary crusher in crushing/classifying workshop of large scale beneficiation plant, or cement or building material sectors. It can be also used to convey materials with bigger particle sizes and specific gravities in a short distance..

Production capacity : 100-400 m³/h

Principle

Plate feeder Mainly divided into three types, heavy plate feeder,light plate feeder,middle-size plate feeder.


The working process is divided into two parts: firstly, the dynamic is produced by motor and transited to connecting rod and ratchet wheel by reducer. Secondly, the dynamic prompts the connecting rod of eccentric device to reciprocate. The dynamic also prompts pawl and ratchet wheel to make driving sprocket rotate so that link plate intermittently moves. As a result, minerals are conveyed.

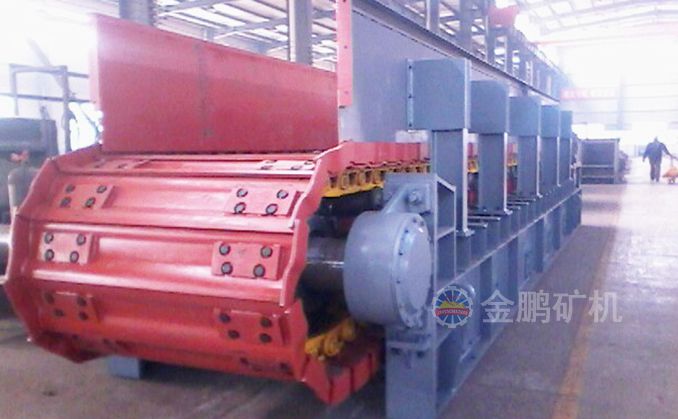

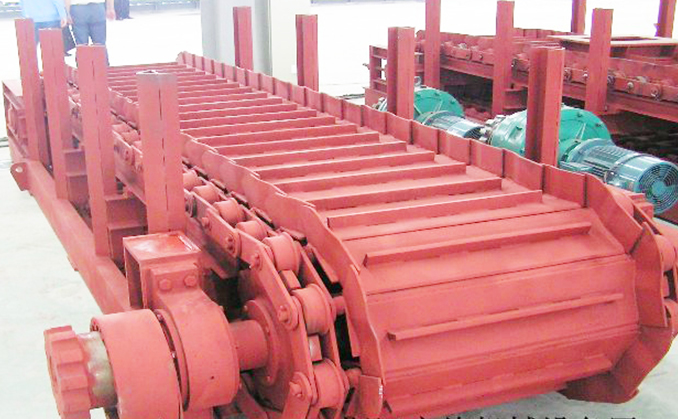

重型板式给料机-02 .jpg

Features

It can be installed horizontally or aslope (the biggest angle is 12°). To avoid the materials from directly striking vibrating feeder, the feed chute must not be totally off load.

Parameters

Heavy plate feeder

Model

Chain board

Production capacity

Electromotor

Boundary dimension(mm)

Weight(kg)

width

Sprocket center distance

speed

Model

Power

(mm)

(mm)

(m/s)

(m³/h)

GBZ120-4.5

1200

4500

0.05

100

Y160L-4

15

6983×5228×2080

31279

GBZ120-5

5000

7593×5228×2080

33427

GBZ120-5.6

5600

8183×5228×2080

34321

GBZ120-6

6000

8638×5228×2080

35900

GBZ120-8

8000

Y180L-4

22

10533×5293×2080

41342

GBZ120-8.7

8700

11383×5293×2080

43164

GBZ120-10

10000

12583×5293×2080

46962

GBZ120-12

12000

14653×5293×2080

51844

GBZ120-15

15000

Y200L-4

30

17658×5518×2080

62157

GBZ150-4

1500

4000

150

Y160L-4

15

6613×5528×2080

33197

GBZ150-6

6000

Y180L-4

22

8638×5593×2080

39257

GBZ150-7

7000

9633×5593×2080

43352

GBZ150-8

8000

10533×5593×2080

45962

GBZ150-9

9000

Y200L-4

30

11683×5668×2080

50522

GBZ150-12

12000

Y225M-4

45

14653×5888×2080

59915

GBZ180-8

1800

8000

240

Y225M-4

45

10533×6188×2080

51360

GBZ180-9.5

9500

12033×6188×2080

57397

GBZ180-10

10000

12593×6188×2080

59632

GBZ180-12

12000

14653×6188×2080

66029

GBZ240-4

2400

4000

400

Y200L-4

30

6613×6718×2080

44780

GBZ240-5

5000

7533×6718×2080

50737

GBZ240-5.6

5600

8133×6718×2080

52447

GBZ240-10

10000

Y225M-4

45

12593×6718×2080

76373

GBZ240-12

12000

14653×6718×2080

85331

Middle-size plate feeder
ModelChain boardProduction capacity(m³/h)ElectromotorBoundary dimensionWeight(kg)
width(mm)Sprocket center distance(mm)speedModelPower
(m/s)(mm)
GBH80-2.280022000.025-1.515-91Y132M-47.53840×2853×11853722
GBH80-440005640×2826×11854903
GBH100-1.61000160022-1313240×3026×12353561
GBH100-33000Y160M-64640×3114×12354548
GBH120-1.81200180035-2173440×3314×12353965
GBH120-2.222003840×3314×12854238
GBH120-2.626004240×3314×12854572
GBH120-330004640×3314×12854866
GBH120-440005640×3314×12855706
GBH120-4.545006140×3314×12856114
Light plate feeder
ModelChain boardfeeding particle(mm)Production capacity     (m³/h)ElectromotorBoundary dimension
width(mm)Sprocket center distance(mm)speed(m/s)ModelPower(mm)
GBQ50-650060000.1616060Y160M-67.57476×2475×980
GBQ50-9.5500950010976×2475×980
GBQ50-12500120000.14114276×2790×980
GBQ50-14500140000.1660Y160L-61115476×2826×980
GBQ80-68006000107Y160M-67.57476×3045×980
GBQ80-108001000011476×3045×980
GBQ80-1280012000Y160L-111113476×3126×980
