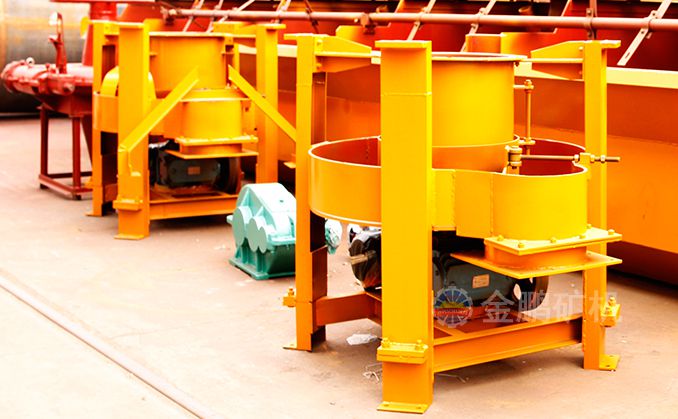

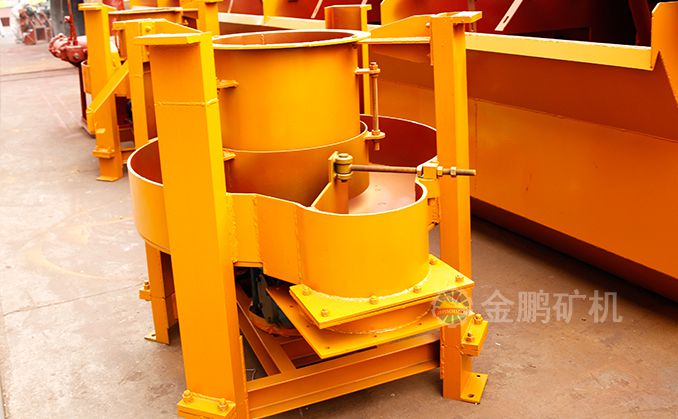

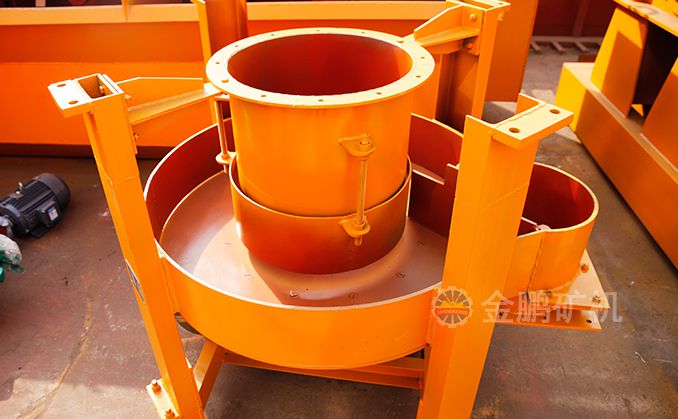

Disc feeder

This product is applicable to the ore processing plant, smelting plant, cement plant, sands, machine casting workshop, usually hanging on the steel structure, installed in the bottom hopper for continuous feeding.

Production capacity : 0~88.4t/h

Max particle : 20-80mm

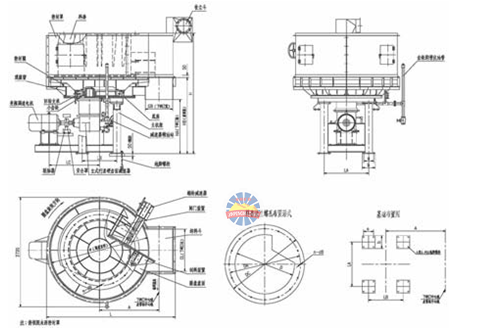

Structure


Applicable materials

slag, clinker, gypsum, limestone, clay, slag powder, granular or small block material, etc

product operating principle

Material from the hopper into the cylinder, materials along the material feeding cylinder are stored on the disc depending on itself weight. Using adjusting bolts to adjust the clearance between the sleeve and the disc then to control the corner of the nature of the material on the disc.Disc rotates, the material was evenly scraping by the  knife on the disc to discharge the outside of the disc, such as the rotating disk, the material will catch by uniform discharge knife scraping into the materials hopper.Disk is continuously operating to completes the uniform feeding operations.Adjust the clearance between the unloading knife and disc, can also control  the feeding capacity. When feeder is working, motor through the pulley drives the disk installed on the worm gear reducer.

Advantages

1. Stable operation and easy to operate;

2. The broad scope, efficient;

3. The big bearing capacity, smooth operation;

4.  simple structure, uniform feeding, reliable usage, if adjust the distance between adjusting sleeve and disc, can achieve the purpose of regulating feeding capacity.

Parameters

Disc feeder

 type

Model

Disc diameter(mm)

Disc speed(r/min)

feeding capacity(t/h)

Electromotor mode

Electromotor power(kW)

Weight(kg)

Closed Hanging type

YG300

300

10

0 〜1.8

Y80L-4

0.55

115

YG400

400

10.7

0 〜2.6

Y90L-6

1.1

120

YG500

500

0 〜3.3

Y90L-6

1.1

124

YG600

600

10

0 〜5.0

Y90L-6

1.1

130

YG800

800

9

0 〜8.0

Y90L-6

1.1

195

YG1000

1000

9

0〜12

Y90L-4

1.5

263

YG1500

1500

7

0〜22

Y132M2-6

5.5

755

YG2000

2000

5

0〜80

Y160L-6

11

2517

Opened  Hanging type

DK600

600

7.53

1. 8〜3.9

Y90L-6

1.1

410

DK800

800

7.53

3. 5 〜7.6

600

DK1000

1000

7.5

1.8〜16.7

Y100L-6

1.5

725

DK1300

1300

6.5

4. 3 〜27.9

Y132S-6

3

846

DK1600

1600

6

7.03 〜48.6

Y132M1-6

4

1980

DK1800

1800

5

9.26 〜60

Y132M2-6

5.5

3070

DK2000

2000

13.6 〜88.4

Y132M2-6

3260
