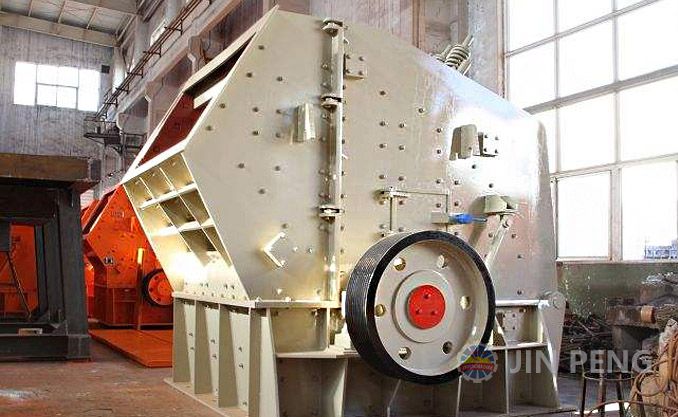

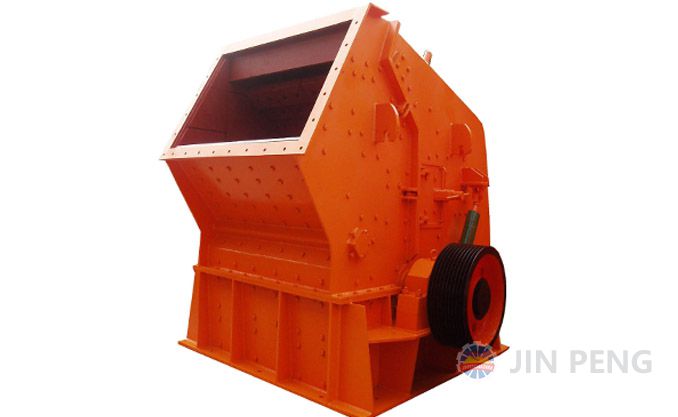

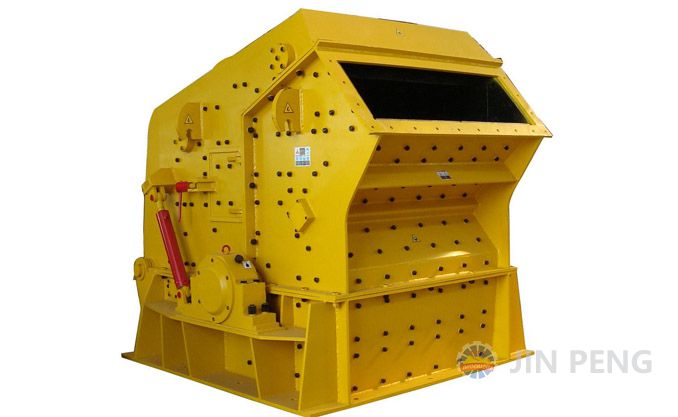

Impact crusher

Impact crusher is mainly used in ore crushing finely, its partical size can adjust, broken specifications diversification, big crushing ratio, material after broken cube grains, etc.).

Max particle : 1-400mm

Production capacity : 1-800t/h

Structure

Counterattack crusher is a kind of the use of impact energy to broken material crushing machine, this machine is working, under the drive of the motor, the rotor high-speed rotation, the material into the plate hammer function area, and the rotor plate hammer impact broken, and then again to counter device is broken, and then back to the board from the back plate hammer function area is broken again, this process is repeated, material from big to small into one, two, three, back cavity repeated broken, until the material being broken to the required size, is being exhausted from port discharge, adjust the clearance between the back frame and rotor can achieve the purpose of the material discharging granularity and material to change shape.



Advantages

1, broken than large, generally for 30 to 40, the largest up to 150.

2, high grinding efficiency, low power consumption.

3, product granularity and less crushing phenomenon.

4, can selective crushing.

5, adaptability, can be hard brittle broken, fibrous and the following material, especially suitable for brittle material breakage.

6, equipment, small volume, light quality, simple structure, easy maintenance.

Parameters

Impact crusher

Model

rotor diameter(mm)

rotor length(mm)

Max particle(mm)

Production capacity(t/h)

motor power(kw)

weight(kg)

PF-0504

500

400

100

5-8

7.5

1.5

PF-0607

640

700

120

10-20

30

4.1

PF-1007

1000

700

250

15-30

37

6.5

PF-1010-1

1000

1000

250

30-80

75

12.7

PF-1210-1

1250

1050

300

60-120

110

14.5

PF-1212-1

1250

1250

300

80-140

132

16.8

PF-1214-1

1250

1400

300

100-160

132

19.5

PF-1310-1

1300

1050

300

70-140

132

14.2

PF-1315-1

1300

1500

300

100-180

180

21.5

PF-1320-1

1300

2000

300

150-250

200

24.5

PF-1520-1

1500

2000

300

180-320

220

29.5

PF-1622-1

1600

2200

350

400-600

250

101

PF-1822-1

1800

2200

400

500-800

280

118
