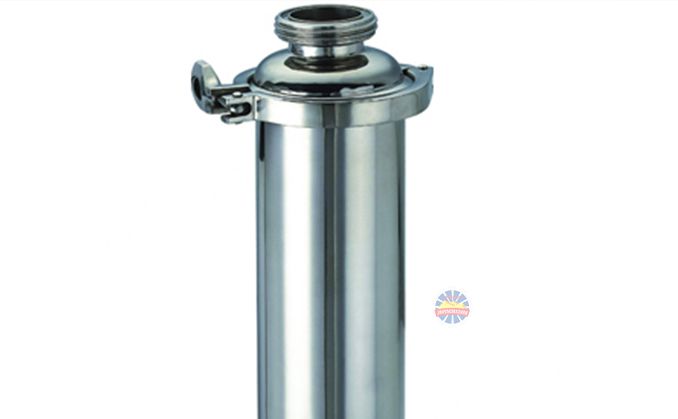

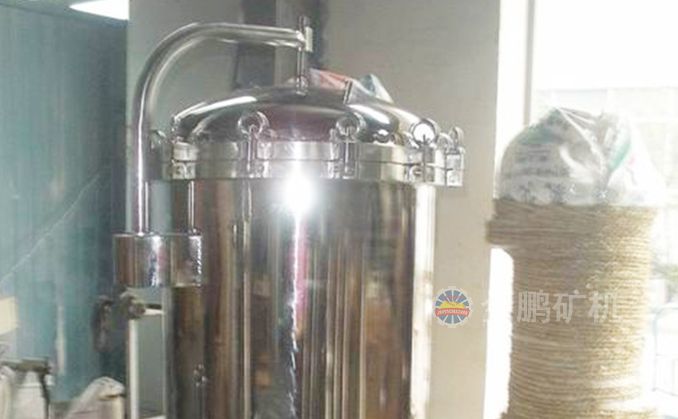

Pipe filter

Pipe filter is mainly used to remove liquid containing a small amount of granular objects of equipment, can be used to protect compressor, pump, instruments and other equipment, make its normal work, and can prolong the service life of equipment, when liquid flows into the net filter cartridge, the impurities in the liquid to stop, and then from the liquid to be treated to clean the filter outlet.

Production capacity : Pipe filter is mainly used to remove liquid containing a small amount of granular objects of equipment, can be used to protect compressor, pump, instruments and other equipment, make its normal work, and can prolong the service life of equipment, when liq

Structure

Applicable materials

Corrosive materials and weak corrosively medium for chemical production.In the refrigeration material at low temperature;Food and pharmaceutical materials

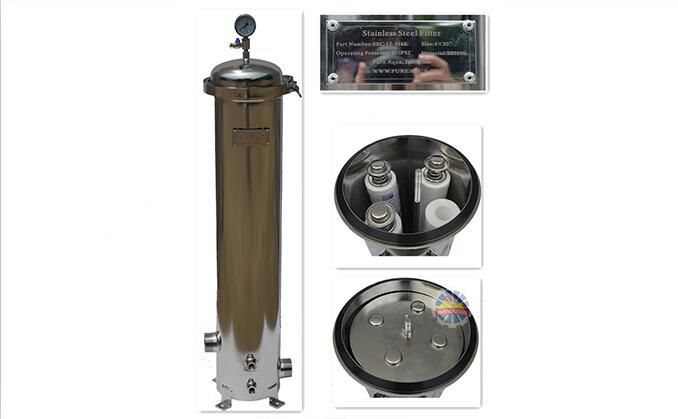

Product structure

Pipeline filter is mainly composed of takeover, barrel, filter basket, flange, flange cover and fasteners, etc.Installed on the pipeline to remove large solid impurity in the fluid, the machinery and equipment (including compressor, pump, etc.), the instrument can work normally and operation, to achieve stable process, the role of guaranteeing production safety.

Product working principle

When liquid through cylinder into the filter basket, the solid impurity particles is blocked inside the filter basket and clean fluid through the filter basket, by filter outlet.When need to be cleaned, turning the screw at the bottom and net fluid, remove the cover flange and repack after cleaning.


Advantages

Pipeline filter has a compact structure, great capacity, small pressure loss and applicability is wide and convenient maintenance.

Parameters

Tubular filter

filter area(m2)

maximum filtering pressure(KPa)

barrel volume(m³)

length(m)

weight (kg)

20

500

5

6

3145

40

600

9.2

6

4958
