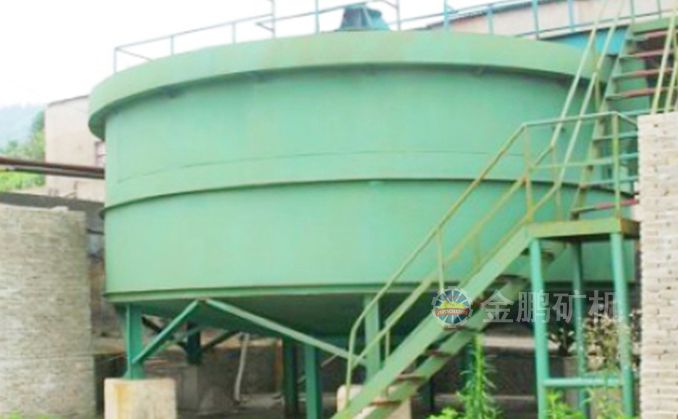

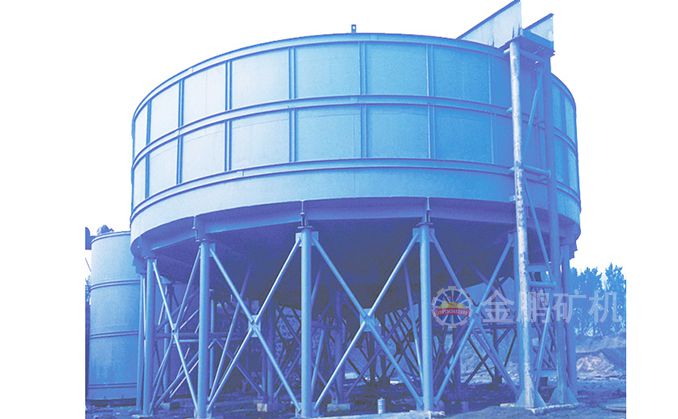

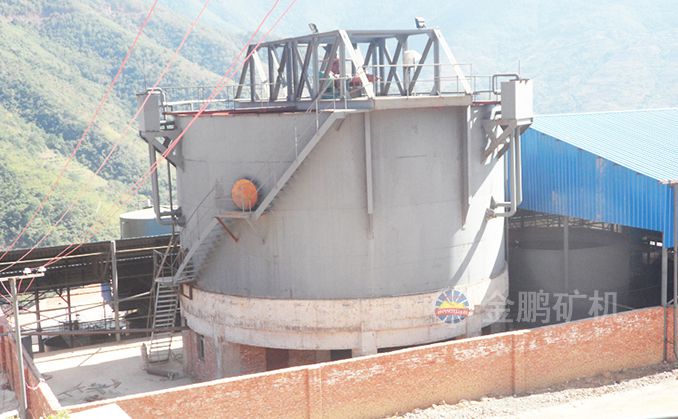

Double layer washing thickener

After washing thickener is cyanide leaching pulp washing operation of special equipment for solid-liquid separation, and can be used in uranium hydrometallurgy, light industry and chemical industry in the dehydration operation, cover an area of an area small, save energy consumption, and can simplify the configuration process.

Scope of Application : Is mainly used to choose the gold cyanide process of countercurrent washing,wet metallurgy, light industry ,chemical industry of washing and dehydration

Production capacity : ≤250t/d

Principle

Scope of application

Mainly used for the selected gold cyanide process of countercurrent washing, can also be used in wet metallurgy, light industry and chemical industry of washing and dehydration.

product operating principle

Pulp by feeding tube into the, free settling in the pulp of rake area by the pressure of scraper further enrichment, gradually by rake to pool center, by the row ore mouth by gravity into the next layer in the pool, water is entered into the most lower level for material washing distribution box, the bottom of the overflow return distribution box into the upper material for washing, the overflow of the layer by the overflow weir discharge, after washing the bottom material is twice.

Advantages

small occupied area,save energy

Parameters

Double washing thickener

Model

diameter(m)

Central pool depth

Deposit area

Rotation rate of rake

Production capacity

Motor model

Motor power

weight

Note

(m)

(m³)

(r.p.m)

(t/d)

(kw)

(kg)

2NZS6

6

5.34

56.5

0.25

≤50

Y112M-6

2.2

9050

without tank

2NZS7

7

5.41

77

≤56

10000

2NZS8

8

6.08

100.7

0.28

≤68

Y132M1-6

4

33800

with tank

2NZS9

9

5.91

127.3

≤88

45000

2NZS12

12

6.87

226

0.2

≤160

Y132(M2)-6

5.5

38320

without tank

2NZS15

15

6.95

353.3

0.15

≤250

43942
