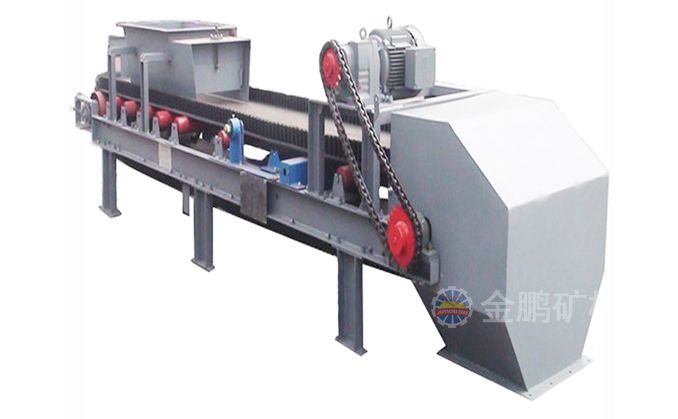

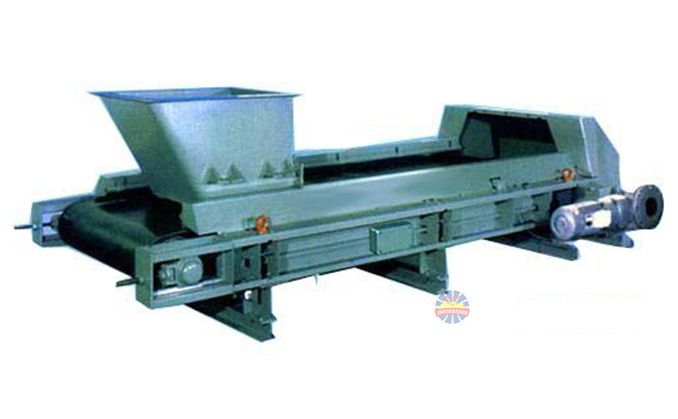

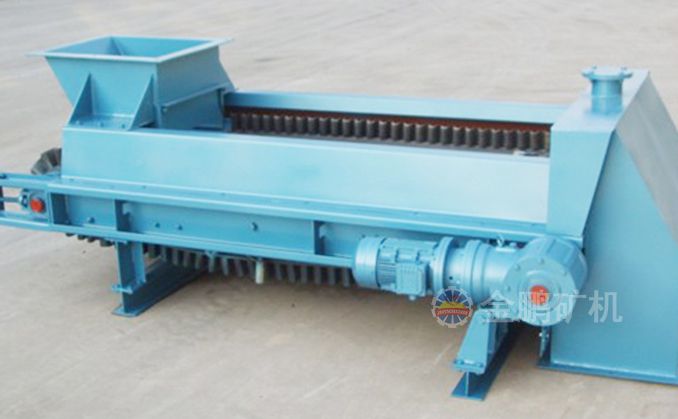

Belt type zinc powder feeder

Belt type zinc powder feeder used in gold cyanidation replacement process, special in adding zinc powder by belt. Reducing the labor intensity and loss of zinc powder with other advantages

Scope of Application : Ore dressing, chemical, pharmaceutical, food and other departments

Application material : Adding zinc powder continuously and evenly to the pregnant solution mixer in gold cyanidation processing

Structure

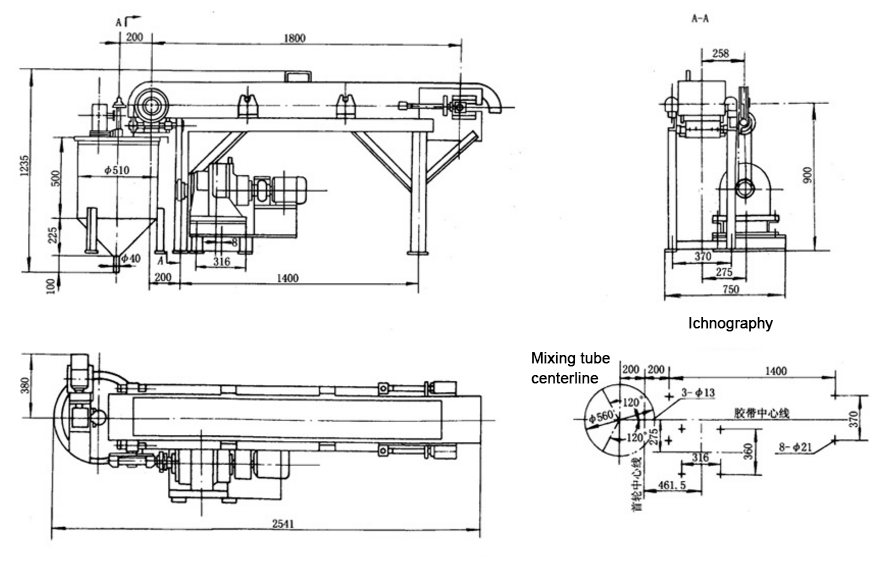

Outline and installation dimensions

Special belt type zinc powder feeder used in gold cyanidation replacement process

Advantages

1、 The device is composed of belt feeder and mixing barrel, used to complete the zinc powder addition and pregnant solution mixing with zinc powder

2、zinc powder can add into the mixer automatic after 8 hours operation, Quantity of zinc powder can evenly adding on the belt in once time every 8 h,

3、Can reduce the labor intensity and the loss of zinc powder

Parameters

Belt type zinc powder feeder

Draper-type

Belt width

Drum center distance

Belt speed

Number of gate lifting

Motor model

Motor power

Weight

(mm)

(mm)

(mm/min)

(c. p. m)

(kw)

(kg)

250×1800

250

1800

3.5

28

Y90S-6

0.75

482
